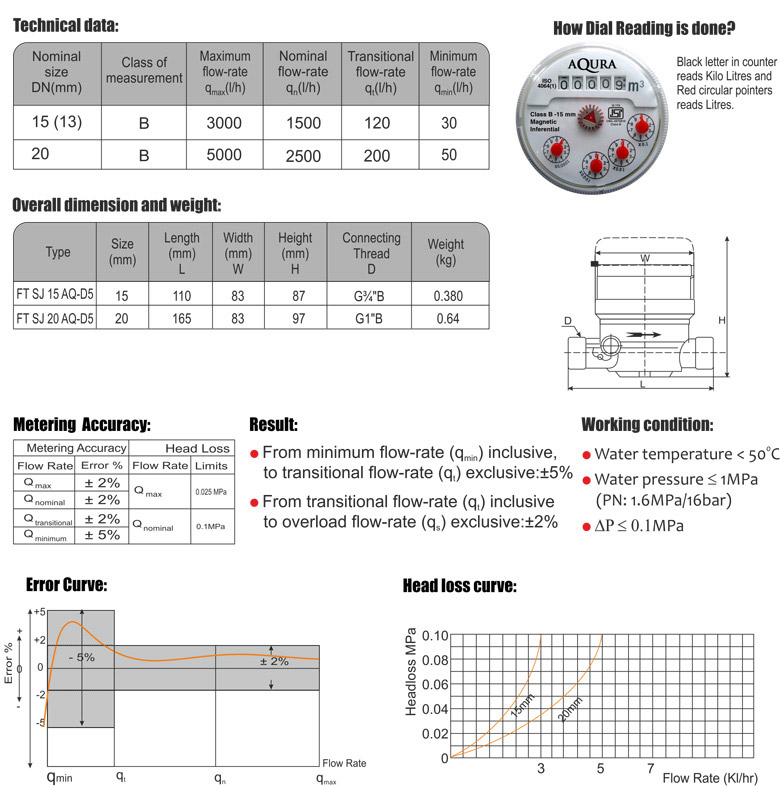

Technical spec:
Single jet , Velocity Type, Inferential, Super dry dial, straight reading in KLitres, Horizontal Flow, Magnetic Coupled water meter as per IS 779:94 and conforming to ISO 4064(1) Class 'B' Standard, suitable for Horizontal line connections.
Operations:
Single Jet is a velocity type inferential water meter.
Water flows through the inlet of the body and enters the
measuring chamber. The force of the water rotates the
turbine. The velocity and the number of performed turns
of the turbine is proportional to the volume of water
passing through the meter. A drive magnet transmits the
motion of the turbine to a driven magnet located in the
sealed dial register. The driven magnet is connected to a
gear train which translates the turbine rotation into a
volume displayed on the counters in a dry dial register.
Standards:
Approved as per IS 779:94, Conforms to ISO
4064 (1) Class 'B'.
Sizes:
15mm and 20mm
Features:
- Robust cap and Lid construction protects the meter from external damages
- Dials are Hermetically and vacuum sealed making it Moisture proof, dust-free and waterproof .
- The counters designed simple and precise, read in Kilo Litres and litres in circular pointers.
- Star wheel in the middle shows turbine movements at the lowest flows and can be used to detect leakage.
- Tamper-resistant construction: Special Anti tampering and rigid plastic closure ring prevents removal of dial register and breaks during tampering.
- Improved readability : dials can be rotated 360 for convenient meter reading.
- Light weight turbine pivoted perfectly on a highly polished non magnetic SS Pivot avoids friction and tension in turbine movement.
- High quality sapphire jewels bearing provided for low flow start-up and superior low flow accuracy.
- High quality virgin engineering plastics used for manufacturing of components, hence long lasting and
durable in worst environment conditions.
- Superior low flow rate accuracy and greater stability in high flow rates.
- Not sensitive to particulates in the water…The "straight through" design allows for most particles to simply pass right through causing no damage to the meter.
