Technical spec:

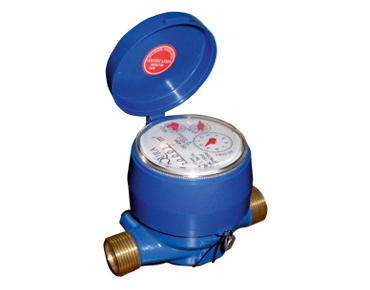

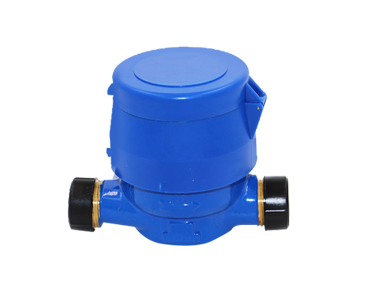

Single Jet, Velocity Type, Inferential, Super Dry Dial, Straight Reading in Litres, Horizontal Flow, Magnetically Coupled water meter as per ISO 4064(1) Class 'C' standard.
Operations:
Class 'C' Single Jet water meter is a Velocity type inferential water meter. Water flows through the inlet of the meter into the measuring chamber where it drives the impeller. A drive magnet transmits the motion of the impeller to a driven magnet located within the sealed Dial register. The driven magnet is connected to a gear train which translates the impeller's rotation into volume displayed on the counters in the dial register.
Standards:
Conforms to ISO 4064(1) Class C and EEC Directive 75/33/EEC.
Sizes:
15mm
Working condition:
- Water temperature < 50°C
- Water pressure ≤1MPa (PN: 1.6MPa/16bar)
- △P≤0.1MPa
Features:
- Conforms to ISO 4064 Class 'C' and EEC Directive 75/33/EEC
- High Accuracy of o to ± 2% at a low flow rate of 15 ltr/hr.
- Starting flow of the meter is 6ltr/hr or less.
- External magnet tamper proof construction: Special designed anti-magnetic Shields provided on magnetic coupling that protects it from external magnetic interference.
- Dials are hermetically sealed to prevent condensation, offer waterproofing & vacuum sealing.
- Dial can be rotated 360" for convenient reading.
- Brass Body coated with Rust Free Coating.
- Highly Durable and Longer Life.
- Maintains metering accuracy and working characteristics remains over a long time period.
- Specially designed Step down gears carry rotation from the turbine and transmit to the dry dial for reading, thus achieving a 100% friction less metering accuracy.
